The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed. You will need to set the desired delay time using the Universal Delay Drilling Tool (UDDT), Not Included, and then pour in the ejection charge. The Universal Delay Drilling Tool (UDDT) is required to adjust to a shorter time delay on all DMS rocket motors and is available in the AeroTech Accessories section of this website.

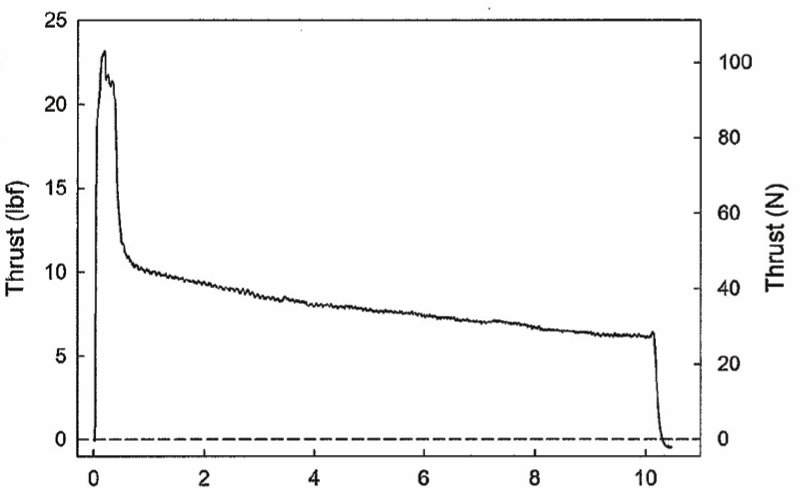

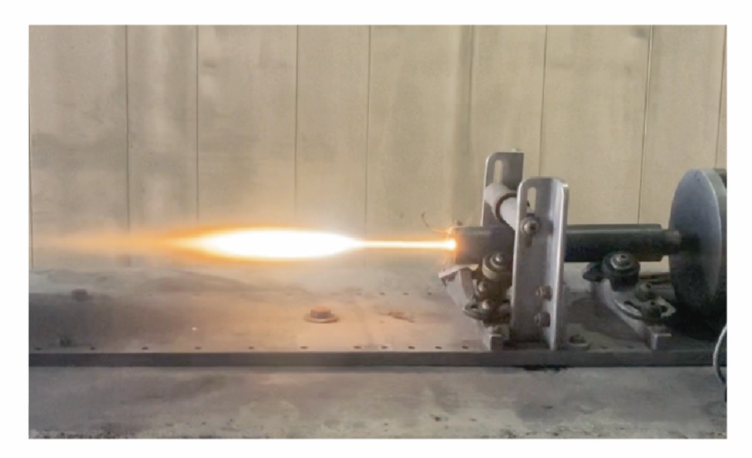

The I40N-P is a long-burn, high-performance rocket motor intended for large gliders and lightweight vertical trajectory rockets for flights to high altitudes. It delivers 374.9 N-Sec (84.3 lb.-Sec.) of total impulse with an impressive 10.0 second burn time and a total weight of 12.7 oz. (359.9 g). This new rocket motor utilizes 7.0 oz. (197.0 g) of AeroTech’s aerospace-grade Warp-9™ (N) propellant formulation with a core-modified end-burner design. Displaying a yellow-orange flame studded with "mach diamonds", Warp-9 is AeroTech's fastest-burning propellant. Warp-9 is perfect when you need the highest thrust possible or when you have an end-burner requiring a high initial thrust with a steady and strong sustained thrust. The I40N-P generates a peak thrust of 101.9 N (22.9 lb.) with an average thrust of 37.8 N (8.5 lb.). The I40N-P is a plugged motor that does not produce delay smoke or an ejection charge, requiring the use of an electronically-activated recovery system.
DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a brilliant white flame with lots of dense white smoke and a throaty roar at lift-off.
This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
Motor Diameter: 1.5 inches (38mm)
Casing Length: 7.98 inches (203mm)
Total Impulse: 374.9 N-sec
Average Thrust: 80 newtons
Thrust Duration: 10.0 seconds
Delay Time: Plugged
Propellant Weight: 197 grams
Motor Weight: 359.9 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
